Stereolabs Mini Carrier Board , NVIDIA ORIN NANO 8GB , 67 TOPS , ZBX-540110

Descrição

Stereolabs Mini Carrier Board , NVIDIA ORIN NANO 8GB , 67 TOPS , ZBX-540110

Produto Lacrado de Fábrica

What’s in the Box

1x Mini Carrier Board with the selected optional parts

1x Extra Power Supply Connector

2x Sync Connectors

1.5 mts GMSL2 Fakra Cable F-F

Posso ajudar você a encontrar o que precisa! Escreva para mim aqui.

Acessórios Opcionais:

5 e 10 mts GMSL2 Fakra Cable F-F

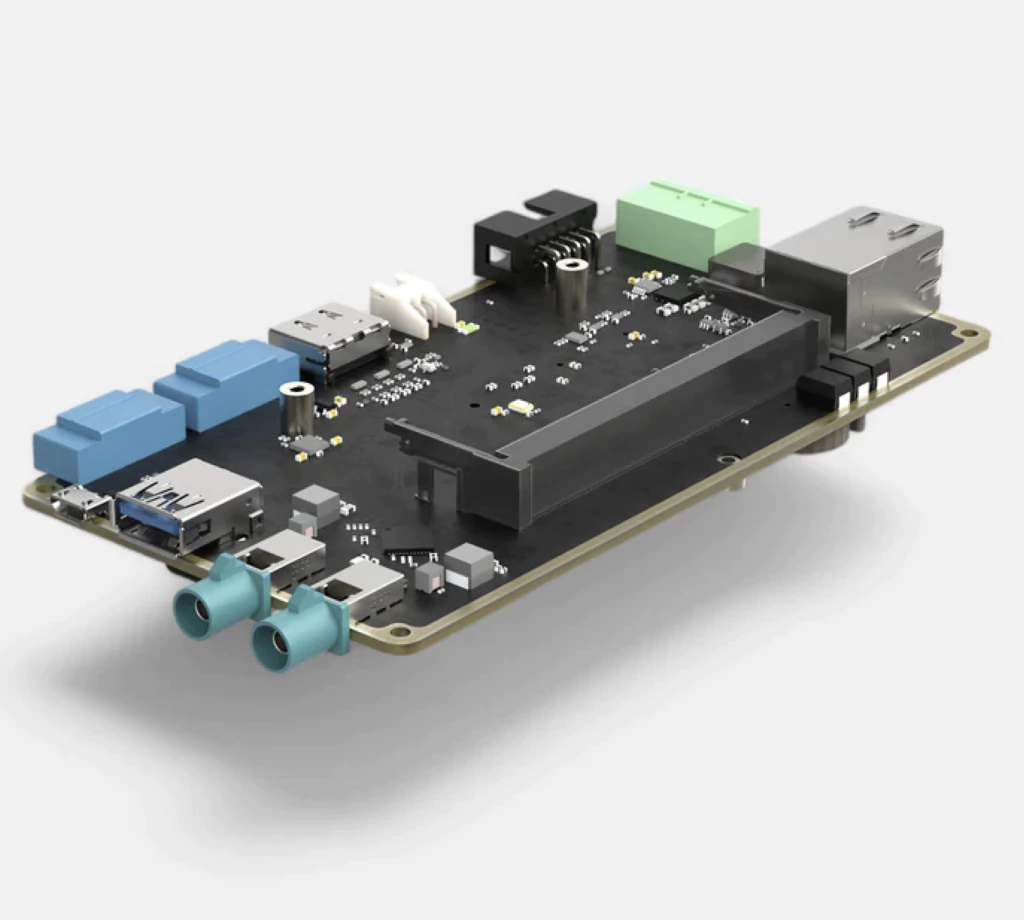

A Mini Carrier Board é uma placa de IA compacta e de alto desempenho, projetada para integração perfeita com módulos NVIDIA Jetson™.

Projetada especificamente para aplicações baseadas em visão orientadas por IA, a Mini Carrier Board oferece interfaces de E/S essenciais, incluindo suporte para conectividade GMSL2.

Seu design prioriza escalabilidade e integrabilidade, tornando-a a solução ideal para produção em massa e implantação em larga escala de robótica com tecnologia de IA e sistemas baseados em visão.

Seja para desenvolvimento de robôs autônomos ou sistemas de IA de ponta, a Mini Carrier Board oferece o desempenho e a flexibilidade necessários para dar vida aos seus projetos.

I/O interfaces

2x GMSL2 FAKRA-Z Connectors *

1x USB3.0 Type-A

1x 10/100/1000 Base-T Ethernet RJ45

1x HDMI 1.4

1x Micro USB2.0 Type-B for system flashing & OTG

1x GMSL2 Camera Synchronization Trigger Input

1x GMSL2 Cameras Synchronization Trigger Output

1x 12V Fan Entry. The fan installation is mandatory when the Jetson™ operates in MAXN SUPER mode.

Conectividade WiFi 6 com 1 módulo Intel AX210 montado no soquete M.2 Key-E 2230 e com 2 antenas WiFi de 2,4/5 GHz

Miscellaneous Connector includes: 1x CAN, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND

* O ZED Box Mini está limitado a 1 entrada ZED X One 4K.

* As 2 entradas GMSL2 são compatíveis com todos os modelos de câmera StereoLabs.

General Specifications

Dimensões: 152,8 × 77,5 × 23,7 mm

Opções de montagem: 4 furos de montagem M2.5

Peso: 123 g

Alimentação: DC-IN 10,5 V a 13,5 V — 60 W máx.

Conector de bloco de terminais parafusável TBP01P1W-508-02GR

SSD de 256 GB montado em soquete M.2 Key-M 2242

Todos ZED Box são fornecidos com NVIDIA Jetpack 6.2

WiFi

Conectividade WiFi 6 com 1 módulo Intel AX210 montado no soquete M.2 Key-E 2230 e com 2 antenas WiFi de 2,4/5 GHz.

Variações de Módulos NVIDIA de IA Disponíveis

NVIDIA® Jetson™ Orin Nano 4GB module

Ai Performance: 34 TOPS

Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode.

NVIDIA® Jetson™ Orin Nano 8GB module

Ai Performance: 67 TOPS

Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode.

NVIDIA® Jetson™ Orin NX 8GB module

Ai Performance: 117 TOPS

Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode.

NVIDIA® Jetson™ Orin NX 16GB module

Ai Performance: 157 TOPS

Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode
