Descrição

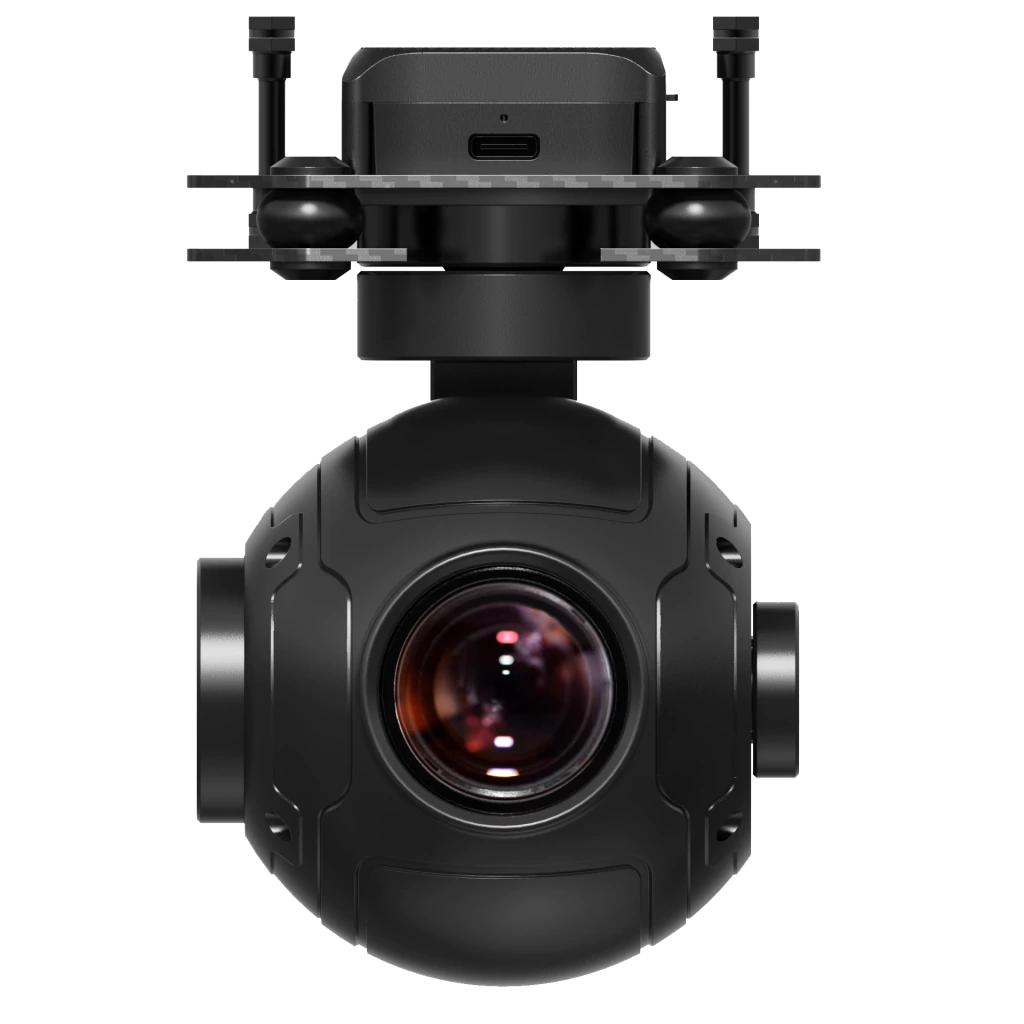

SIYI ZR10 2K 4MP QHD 30X Híbrido Zoom Gimbal Camera 400 MP Drones Robots UAV UGV USV
Produto Lacrado de Fábrica
Na Caixa
1 x ZR10 Optical Po
1 x MK15 / HM30 Air Unit S.Bus Y Cable
(Connect SIYI MK15 and HM30 air unit’s S.Bus port to acquire control signal, then one connector of the cable goes to SIYI gimbal, another goes to flight controller
1 x Control Y Cable
(Connect SIYI gimbal’s control signal port with SIYI link and controller, including UART control input and S.Bus input
1 x SIYI Gimbal Power Cable (Power supply cable for SIYI gimbal
1 x SIYI Gimbal Ethernet Cable
(A backup cable for customer DIY purpose to connect SIYI gimbal to third-party Ethernet devices
1 x SIYI Gimbal to SIYI Link Cable
(An all-in-one cable for only touch screen control to SIYI gimbal through SIYI link, it can power SIYI gimbal and can also transfer video stream and control signal
1 x SIYI Gimbal Ethernet to RJ45 Cable (Connect SIYI gimbal with RJ45 device directly
1 x SIYI Gimbal to PX4 / ArduPilot Flight Controller UART Cable
(A universal cable for ZT30, ZR30, and A8 mini, it connects SIYI gimbal to the UART port on PX4 / ArduPilot flight controller for data communication and gimbal control
1 x ZR10 Screw Pack
(Using with the fixing board to mount gimbal, including 8 x Cross countersunk head machine screw KM3*12, 8 x M3 Nut Black
1 x ZR10 Mounting Board & Damper Pack
(For mounting and fixing gimbal and stabilization)
Product Highlights
UAV Pod Camera Payload para Drone Surveillance & Inspection
Zoom óptico de 10X / Zoom digital de 3x Suporte
de pixels de 4 megabits
Cartão TF / Gravação de vídeo 2K / Fotografia 2K
Estabilizador cardan de 3 eixos
Controle FOC de alta precisão
HDR (alta faixa dinâmica)
Câmera de visão noturna Starlight
Abertura F1.8
RESUMO
30X Hybrid Zoom, 10X Optical Zoom
2K Quad HD Video & Photography
4MP 1/2.7-Inch CMOS
320-Degree Yaw Axis Rotation
Nose Mode
Upside Down Mode
Compatible with ArduPilot & PX4 (Mavlink)
High Accuracy & High Collaboration Control Algorithm
